Family 200 · Bench consumables
Wash bottles, tubing, stoppers, paper, pipettes.
The things a bench uses up, bought by the box and listed by the size that matters: bore and wall for tubing, size number for stoppers, grade and retention for paper.
Wash bottles
Polyethylene, translucent, with a bent delivery tube.
Wash bottle, narrow mouth
A squeeze bottle with a bent delivery tube and a cap that seals. Translucent, so the level shows through the wall.
250 ml · 500 ml · 1 l
cap colour by request
Wash bottle, wide mouth
The same body with a wider neck, for filling from a jug without a funnel.
500 ml · 1 l
cap colour by request
Delivery tube and cap
The tube and the cap are the parts that crack; both are listed on their own so a bottle is not thrown away for a split tube.
to fit 250 ml, 500 ml and 1 l
sold separately
Tubing
Bore first, then wall, in millimetres. Cut by the metre.
Silicone tubing
Soft, clear and flexible in the cold; it takes a hose clip and slides over a glass side arm without a fight.
bore 2 mm to 12 mm · wall 1 mm to 3 mm
by the metre; coils on request
PVC tubing
Firmer than silicone, clear, and cheaper by the metre: the tubing for a wash-bottle line or a drain.
bore 3 mm to 12 mm · wall 1.5 mm to 3 mm
by the metre
Rubber tubing, thick wall
Black or red, heavy wall, for a vacuum line where a thin wall would collapse.
bore 6 mm to 12 mm · wall 3 mm to 5 mm
by the metre
Hose clips
Spring and screw clips, listed by the outside diameter of the tubing they close on.
for 6 mm to 20 mm outside diameter
in tens
Stoppers
Rubber by size number, glass by joint.
Rubber stopper, solid
Tapered, by the standard size number, which fixes the top and bottom diameter. Grey or red.
size 00 to size 15
in tens
Rubber stopper, one hole and two holes
The same sizes, bored for a glass tube or a thermometer.
size 0 to size 13
in tens
Cork stopper
Natural cork, tapered, for dry storage; not for liquids that seep.
sizes as listed
by the bag
Ground-glass stopper
Pennyhead or hexagonal, by the standard-taper joint that matches the socket on the flask.
joint size as listed
singly
Filter paper
Grade and retention as the mill prints them. Diameters in millimetres.
Qualitative paper, medium
The general-purpose grade: medium speed, medium retention, the sheet for most gravity filtrations.
55 mm · 70 mm · 90 mm · 110 mm · 125 mm · 150 mm · 185 mm · 240 mm
box quantity as packed
Qualitative paper, fast
A coarse, open sheet for gelatinous precipitates and quick separations where fine particles do not matter.
70 mm · 90 mm · 110 mm · 125 mm · 150 mm · 185 mm
box quantity as packed
Qualitative paper, fine
A slow, tight sheet that holds fine particles. Use it with a funnel and patience.
70 mm · 90 mm · 110 mm · 125 mm · 150 mm
box quantity as packed
Pleated paper
Pre-folded for speed, in the same grades, ready to drop into a funnel.
110 mm · 125 mm · 150 mm · 185 mm · 240 mm
box quantity as packed
Disposable pipettes
Glass and polyethylene, by the box.
Pasteur pipette, glass
Soda glass, plain or plugged, with a separate rubber teat.
150 mm · 230 mm
by the box
Transfer pipette, polyethylene
Moulded in one piece with its bulb; graduated for indication only.
1 ml · 3 ml · 5 ml
by the bag
Pipette teats
Rubber bulbs for glass Pasteur pipettes. They harden on the shelf, so buy the quantity you will use.
one size
by the bag
What to stock deep
A stockroom’s view of what runs out, from the lists it reads.
Stock deep
Medium-grade filter paper in the size your funnels take; rubber stoppers in the two sizes that fit your conical flasks; silicone tubing in one bore; and wash-bottle caps. These are the items that run out on a Friday afternoon, and each is cheap by the box and awkward to be without.
Stock shallow
Fast and fine paper, wide-mouth wash bottles, thick-wall rubber tubing and bored stoppers. One box of each covers a year on most benches; the reply to your list will say when a box quantity is larger than you asked for.
Do not stock
Anything that ages on the shelf: rubber teats harden, cork dries and cracks, and polyethylene yellows in sunlight. Buy those in the quantity you will use within the season and list them again next season.
Not carried
The limits of this family, stated plainly.
Reagents and solvents
Not stocked, not sourced, not quoted. A chemical on a list is struck and the rest of the list is read.
Never
Anything for medical or diagnostic use
Nothing in this family is sold for clinical, diagnostic, medical or veterinary purposes.
Not sold for it
Safety advice
We can tell you the bore of a tube. We cannot tell you whether it is the right tube for your line; that is for the people responsible for the bench.
Not given

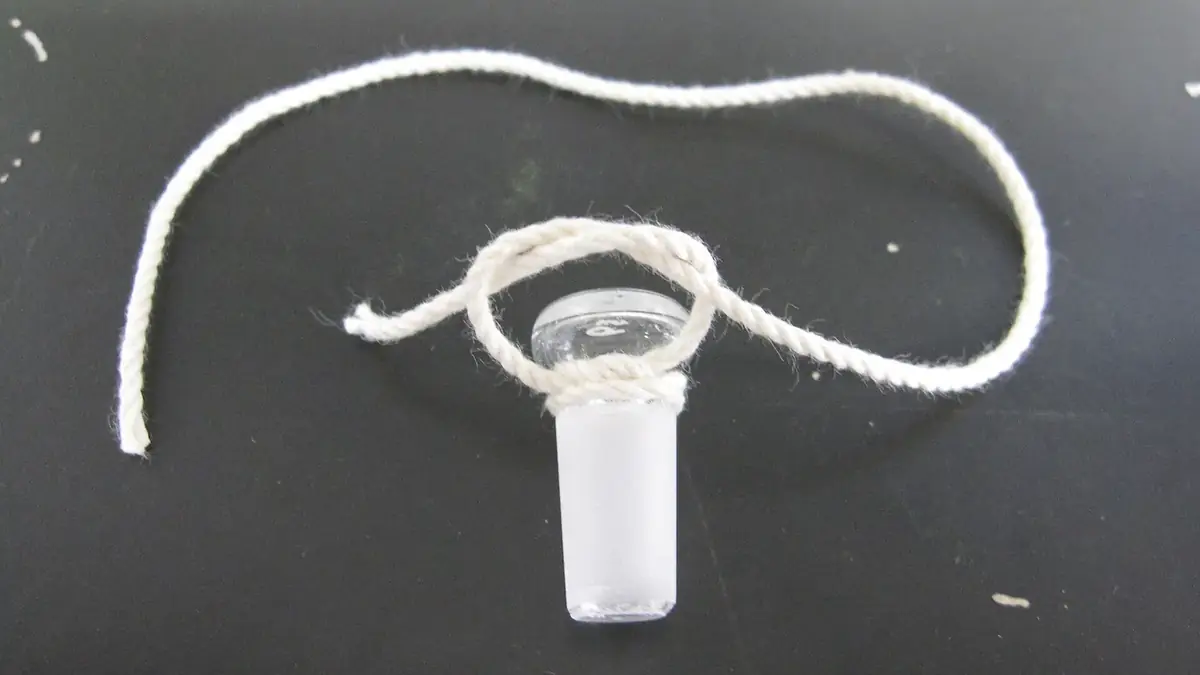

Plate 3
A ground-glass stopper on the bench with its cotton tie, so the pair stays together between uses.
